Tshaj Tawm Thaj Chaw: Daim Ntawv Qhia Tag Nrho rau MBBR Media Xaiv Kev Cai
Raws li tus kws tshaj lij kho dej khib nyiab nrog ntau tshaj 18 xyoo dhau los ntawm kev tsim thiab daws teeb meem MBBR systems, Kuv tau pom cov haujlwm suav tsis txheeb uas qhov kev cuam tshuam ntau dhau ntawm thaj chaw ib leeg ua rau muaj kev ua tau zoo thiab cov teeb meem kev ua haujlwm. Thaum siab -nto- cheeb tsam MBBR media (feem ntau 500-1200 m² / m³) muab qhov pib zoo heev, nws tsuas yog ib qho ntawm kaum ob qhov tseem ceeb uas txiav txim siab ntev - lub sijhawm ua tiav. Qhov tseeb yog tias ob qho kev tshaj tawm nrog thaj chaw zoo ib yam tuaj yeem ua qhov sib txawv raws li cov yam ntxwv xws li pore geometry, biofilm adhesion zog, thiab tus cwj pwm hydrodynamic. Cov lus qhia dav dav no tshuaj xyuas cov kev xaiv uas feem ntau tsis saib xyuas uas sib txawv qhov tshwj xeeb MBBR kev ua tau zoo los ntawm cov txiaj ntsig nruab nrab.
Qhov txaus nyiam nrog thaj chaw saum npoo yog nkag siab tau - nws yog ib qho yooj yim quantifiable metric uas ncaj qha cuam tshuam rau kev kho lub peev xwm. Txawm li cas los xij, tsom ntsoov rau qhov ntsuas no tsuas yog zoo li xaiv lub tsheb raws li lub zog horsepower nkaus xwb thaum tsis quav ntsej roj efficiency, kev cia siab, thiab kev saib xyuas. Los ntawm kev sim ntsuas dav dav thiab tag nrho - ntsuas kev siv thoob plaws hauv nroog thiab cov ntawv thov kev lag luam, kuv tau txheeb xyuas cov yam ntxwv tseem ceeb tshaj tawm uas feem ntau ua pov thawj tseem ceeb tshaj qhov chaw nyob ib leeg hauv kev txiav txim siab tag nrho cov kev ua tau zoo, kev ua haujlwm ruaj khov, thiab cov nqi ntawm lub neej.
I. Lub luag haujlwm tseem ceeb ntawm Media Geometry thiab Hydrodynamics

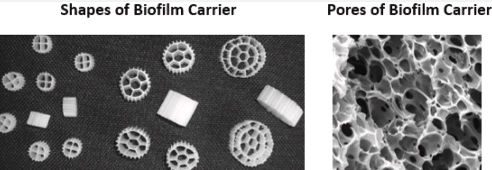

1.1 Pore Architecture thiab Biofilm Development
Cov qauv sab hauv ntawm MBBR media dictates tsis tsuas yog thaj chaw muaj nyob, tab sis, qhov tseem ceeb, qhov chaw ntawd tuaj yeem siv tau los ntawm cov kab mob. Media nrog txoj hauv kev geometries featuring thaj chaw tiv thaiv pom tau zoo dua biomass tuav thaum lub sij hawm hydraulic fluctuations. Cov cheeb tsam tiv thaiv no tso cai rau qeeb - cov kab mob nitrifying loj hlob los tsim kom muaj cov neeg nyob ruaj khov yam tsis tau ntxuav tawm thaum lub sijhawm muaj xwm txheej ceev.
Qhov loj thiab kev faib tawm ntawm qhov pores thiab cov channel hauv xov xwm ncaj qha cuam tshuam rau substrate diffusion thiab oxygen nkag mus rau hauv biofilm. Media nrog qhov pom qhov pore qhov ntev (feem ntau 0.5-3mm) pab txhawb kev hloov pauv huab cua zoo dua, tiv thaiv kev txhim kho ntawm thaj chaw anaerobic hauv cov txheej txheej biofilm sib sib zog nqus uas tuaj yeem ua rau sloughing thiab kev ua haujlwm tsis zoo. Tsis tas li ntawd, qhov kev ntxhib los mos ntawm qhov chaw ua lub luag haujlwm tseem ceeb hauv kev pib biofilm txuas-microscopic irregularities muab anchorage cov ntsiab lus rau cov kab mob pioneer, ua kom cov txheej txheem pib.
1.2 Hydrodynamic cwj pwm thiab Fluidization yam ntxwv
Tus cwj pwm ntawm cov xov xwm hauv reactor ncaj qha cuam tshuam rau kev hloov pauv oxygen, kev sib xyaw ua haujlwm, thiab kev siv hluav taws xob. Media nrog sib npaug buoyancy (tshwj xeeb lub ntiajteb txawj nqus feem ntau 0.94-0.98) fluidize uniformly yam tsis muaj ntau lub zog tawm tswv yim. Kuv tau pom cov kab ke uas cov xov xwm uas tsis tsim nyog yuav tsum tau 30-40% siab dua cov cua ntws los tswj kev ncua, ua kom cov nqi ua haujlwm nce ntxiv.
Cov duab thiab cov duab geometry sab nraud txiav txim siab li cas xov xwm cuam tshuam nrog ib leeg thiab nrog cov phab ntsa reactor. Kev tsim tawm zoo tshaj plaws tsim kom muaj kev kub ntxhov txaus rau kev sib xyaw ua haujlwm zoo thaum txo cov hnav tsis zoo uas ua rau lub neej ua haujlwm luv. Media nrog cov npoo du, sib npaug feem ntau ua kom pom qhov qis qis thiab tsim cov microplastics tsawg dua lub sijhawm ua haujlwm ntev.
II. Material Science thiab Durability Considerations
2.1 Polymer Composition thiab Longevity
Kev xaiv ntawm cov khoom siv polymer (HDPE, PP, lossis cov ntaub ntawv sib xyaw) cuam tshuam rau kev ua neej nyob thiab kev saib xyuas. High- HDPE xov xwm zoo nrog UV stabilizers thiab antioxidants tuaj yeem tswj kev ncaj ncees rau 15-20 xyoo, thaum cov ntaub ntawv tsis zoo yuav degrade hauv 5-7 xyoo. Hauv ib qho xwm txheej tseem ceeb, cov nroj tsuag dej khib nyiab siv cov xov xwm HDPE tau tshaj tawm tsawg dua 1% txhua xyoo hloov pauv tom qab kaum xyoo ntawm kev ua haujlwm tas mus li.
Tshuaj tiv thaiv tshwj xeeb yog qhov tseem ceeb rau kev siv hauv kev lag luam. Media yuav tsum tiv taus cov hydrocarbons, cov kuab tshuaj, thiab huab cua pH yam tsis tau ua nkig lossis poob elasticity. Rau cov ntawv thov hauv nroog, kev tiv thaiv rau cov tshuaj ntxuav tu zoo li hydrogen peroxide thiab citric acid ua kom muaj kev ua haujlwm zoo ib yam thaum lub sijhawm tu.
2.2 Mechanical Strength thiab Hnav Resistance
Lub tshuab durability ntawm xov xwm txiav txim siab lawv lub peev xwm los tiv thaiv kev sib tsoo thiab kev sib txhuam. Media yuav tsum tswj hwm kev ncaj ncees raws li kev ua haujlwm ib txwm muaj thaum ua kom muaj kev ywj pheej txaus los tiv thaiv kev tawg tawg. Kev ntsuas nrawm nrawm simulating 10 xyoo ntawm kev ua haujlwm yuav tsum pom tsawg dua 5% poob phaus thiab hloov pauv me me ntawm cov yam ntxwv saum npoo.
III. Kev ua tau zoo-Txoj Cai Xaiv Raws Li
3.1 Oxygen Transfer Enhancement
Tshaj li muab thaj chaw saum npoo rau kev loj hlob biomass, MBBR xov xwm cuam tshuam rau kev hloov pauv oxygen. Zoo-tsim tawm xov xwm tsim kom muaj kev kub ntxhov ntxiv uas ua rau cov pa npuas, ua rau thaj tsam cuam tshuam rau cov pa oxygen. Cov xov xwm zoo tshaj tuaj yeem txhim kho cov qauv kev hloov pauv oxygen (SOTE) los ntawm 15-25% piv rau cov tso tsheb hlau luam khoob, ncaj qha txo cov cua tshuab hluav taws xob.
3.2 Biofilm Management thiab Shear yam ntxwv
Cov xov xwm zoo tshaj plaws txhawb txoj kev loj hlob ntawm kev ruaj khov, nquag biofilms thaum tso cai tswj sloughing ntawm ntau tshaj biomass. Media uas tsim kom muaj kev sib npaug shear rog tswj qhov zoo ntawm biofilm thickness (100-200 μm) qhov twg diffusion txwv tsawg. Cov kab ke nrog cov yam ntxwv tsis zoo feem ntau ua rau nyias nyias, ua haujlwm tsis zoo ntawm biofilms lossis kev loj hlob ntau dhau los ua rau txhaws thiab channeling.
Comprehensive MBBR Media Xaiv Matrix
| Parameter | Optimal Specification | Kev cuam tshuam kev ua haujlwm | Kev Xeem Methodology |
|---|---|---|---|
| Chaw Tiv Thaiv Qhov Chaw | >70% ntawm tag nrho cheeb tsam | Txiav txim siab biomass khaws cia thaum muaj kev poob siab | Dye penetration xeem |
| Pore Loj Distribution | 0.5-3mm thawj pores | Muaj feem xyuam rau diffusion thiab anaerobic cheeb tsam tsim | CT scanning tsom xam |
| Specific Gravity | 0.94-0.98g / cm³ | Txiav txim siab qhov xav tau ntawm lub zog fluidization | Kev ntsuas ceev gradient |
| Nto Texture | Rab 5-15 μm | Influences thawj biofilm txuas tus nqi | SEM Analysis |
| Oxygen Transfer Enhancement | 15-25% SOTE kev txhim kho | Ncaj qha txo kev siv zog | Kev ntsuas dej huv ntawm ASCE 2-06 |
| Abrasion Resistance | <5% weight loss after 10,000 cycles | Txiav txim siab ua hauj lwm lifespan | Accelerated hnav kuaj |
| Tshuaj tiv thaiv | <10% elasticity loss after chemical exposure | Qhov tseem ceeb rau kev siv tshuab | ASTM D543 immersion xeem |
| Biofilm Adhesion Strength | 20-40 N / m² tev lub zog | Muaj feem xyuam rau biomass khaws cia | Kev cai adhesion kuaj |
| Kev khiav hauj lwm qhov kub thiab txias | -20℃rau +60 degree | Txiav txim siab yooj yim ntawm daim ntawv thov | Kev ntsuas kub ntawm kev caij tsheb kauj vab |
| Khoom noj khoom haus-rau-Microorganism (F/M) Optimization | 0.1-0.4 g BOD/g VSS · hnub | Qhov zoo tshaj plaws rau kev ua haujlwm ruaj khov | Pilot- ntsuas qhov ntsuas |
Cov lus: Cov kev qhia tshwj xeeb rau kev pom zoo MBBR xov xwm xaiv tshaj qhov kev txiav txim siab ntawm thaj chaw
IV. Kev txiav txim siab txog kev ua haujlwm thiab nyiaj txiag
4.1 Kev Ntsuam Xyuas Tus Nqi Li Cas
Tus nqi tshaj plaws -kev xaiv xov xwm zoo suav nrog kev ntsuas tag nrho cov tswv cuab tus nqi tshaj 15-20 xyoo qab ntug. Txawm hais tias qhov siab - thaj chaw xov xwm tuaj yeem hais kom tus nqi 20-30% thawj zaug, lawv qhov cuam tshuam rau kev siv hluav taws xob, kev saib xyuas, thiab kev hloov zaus feem ntau ua rau tus nqi qis dua. Kev ntsuam xyuas kom zoo yuav tsum muaj xws li:
- Peev peev (tus nqi tshaj tawm, shipping, installation)
- Kev siv hluav taws xob (kev txhim kho aeration efficiency)
- Cov nqi kho mob (ntxuav, hloov xov xwm)
- Cov txheej txheem kev ntseeg siab (txo kev pheej hmoo ntawm kev ua raws li cov teeb meem)
4.2 Compatibility nrog Cov Txheej Txheem Uas Tsim Nyog
Kev xaiv xov xwm yuav tsum xav txog kev koom ua ke nrog cov nroj tsuag tam sim no, suav nrog:
- Aeration system muaj peev xwm thiab cov yam ntxwv
- Screen qhib thiab khaws cia system tsim
- Tank geometry thiab kev sib xyaw muaj peev xwm
- Tswj system thiab saib xyuas cov cuab yeej
Cov xov xwm loj loj yuav tsis ua kom cov dej ntws zoo hauv cov tso tsheb hlau luam ntiav, thaum cov xov xwm tsis zoo tuaj yeem khiav los ntawm cov tshuab tshuaj ntsuam uas twb muaj lawm. Cov xov xwm qhov ntev yuav tsum sawv cev rau 1/40 txog 1/60 ntawm lub tank me tshaj plaws kom ntseeg tau tias kev sib raug zoo.
V. Kev Ua Haujlwm Zoo thiab Kev Ua Haujlwm Zoo
5.1 Pilot Testing Protocol
Ua ntej tag nrho - ntsuas qhov ntsuas, kev sim ntsuas dav dav yuav tsum ntsuas:
- Biofilm kev loj hlob kinetics: Saib xyuas tus nqi colonization nyob rau hauv cov dej khib nyiab tiag tiag
- Kev kho mob ua haujlwm: Txheeb xyuas tus nqi tshem tawm rau cov kab mob tshwj xeeb (BOD, ammonia, cov organics tshwj xeeb)
- Hydraulic cwj pwm: Paub meej tias cov kua dej kom zoo hla cov kev hloov pauv uas xav tau
- Kev ntsuam xyuas muaj zog: Cov ntaub ntawv xov xwm rau simulated kev ntxhov siab (kev poob siab, kev hloov pauv kub)
5.2 Kev Saib Xyuas Kev Ua Haujlwm thiab Kev Ua Haujlwm Zoo
Thaum ua tiav, kev soj ntsuam tas li ua kom pom kev ua tau zoo los ntawm:
- Kev tshuaj xyuas xov xwm tsis tu ncua: Ntsuam xyuas biofilm yam ntxwv thiab lub cev mob
- Kev ua tau zoo taug qab: Saib xyuas qhov tseem ceeb ntawm cov txheej txheem tsim
- Kev hloov kho raws tu qauv: Zoo -tune aeration thiab mixing raws li kev coj cwj pwm
Xaus: Ib txoj hauv kev Holistic rau MBBR Media Xaiv
Xaiv qhov zoo tshaj MBBR xov xwm yuav tsum ntsuas ntau yam txuj ci, kev ua haujlwm, thiab kev lag luam tshaj qhov chaw nyob ib leeg. Qhov kev ua tau zoo tshaj plaws yog los ntawm cov txheej txheem kev ntsuam xyuas dav dav uas txiav txim siab tus cwj pwm hydrodynamic, cov khoom siv, thiab kev sib raug zoo nrog rau cov kev thov tshwj xeeb.
High-surface- cheeb tsam xov xwm muab lub hauv paus zoo, tab sis lawv lub peev xwm tiag tiag tsuas yog pom tau thaum txhua yam kev xaiv tau zoo sib npaug. Los ntawm kev siv txoj hauv kev zoo li no, cov kws kho dej khib nyiab tuaj yeem ua kom lawv cov MBBR cov tshuab xa tuaj yeem txhim khu kev qha, ua haujlwm tau zoo thoob plaws hauv lawv lub neej ua haujlwm, ua kom rov qab los ntawm kev nqis peev zoo tshaj plaws thaum tswj hwm kev ua raws li cov kev xav tau ntawm cov dej ntws.
Cov kev xaiv tshaj tawm uas zoo tshaj plaws suav nrog qhov chaw- tej yam kev mob tshwj xeeb, qhov kev cia siab ntawm qhov hloov pauv, thiab ntev - lub hom phiaj ua haujlwm. Qhov kev tawm tswv yim no hloov pauv MBBR xov xwm los ntawm cov khoom siv yooj yim rau hauv kev tsim kho kev daws teeb meem uas xa cov kev ua tau zoo thiab kev ua haujlwm ruaj khov.
