Qhov sib txawv thiab lub luag haujlwm ntawm Stainless Hlau Aeration Diffusers thiab Ordinary Diffusers hauv Kev Kho Dej Wastewater
Taw qhia
Aeration diffusers yog qhov tseem ceeb ntawm cov khoom siv dej khib nyiab hauv kev kho mob lom neeg, ua lub luag haujlwm tseem ceeb hauv kev xa cov pa oxygen los ntawm huab cua mus rau cov cawv sib xyaw thiab txhawb nqa cov txheej txheem tshem tawm cov pa phem hauv qab. Diffusers qhia txog huab cua npuas rau hauv lub reactor, thiab cov yam ntxwv ntawm cov npuas no ncaj qha cuam tshuam rau oxygen hloov efficiency, microbial kev ua, thiab tag nrho cov txheej txheem kev ua tau zoo. Ntawm cov diffusers dav siv hauv cov chaw kho dej khib nyiab (WWTPs) yogstainless hlau aeration diffusersthiabzoo tib yam diffusersfeem ntau yog ua los ntawm elastomeric daim nyias nyias los yog cov ntaub ntawv yas. Txawm hais tias txhua tus ua haujlwm tib lub hom phiaj tseem ceeb - kom yooj yim rau kev tshem tawm cov pa oxygen thiab sib tov - cov khoom siv, cov txheej txheem tsim npuas, kev ua neej ntev, thiab kev saib xyuas yuav tsum sib txawv heev. Kab lus no tshuaj xyuas lub luag haujlwm ntawm cov diffusers no thiab sib piv stainless hlau diffusers nrog hom zoo tib yam hauv kev siv tswv yim.
Lub luag haujlwm tseem ceeb ntawm Aeration Diffusers
Nyob rau hauv activated sludge thiab lwm yam kev kho mob lom, diffusers yog lub luag hauj lwm los tsim ib tug dispersion ntawm huab cua npuas uas nce los ntawm cov dej khib nyiab, pab txhawb kev hloov oxygen thiab sib tov. Cov pa oxygen no tseem ceeb heev vim tias cov kab mob aerobic xav tau cov pa oxygen los ua cov pa phem hauv cov organic, suav nrog biochemical oxygen xav tau (BOD) thiab ammonia. Lub efficiency ntawm aeration system hnyav heev nyob ntawm qhovtsim cov khoom diffuser- suav nrog qhov pore loj, qhov sib nrug, thiab cov khoom siv - uas txiav txim siab cov npuas loj thiab cov pa oxygen hloov pauv tom qab (Metcalf & Eddy, 2014). Fine npuas diffusers tsim cov npuas me me nrog thaj tsam loj dua ntawm ib chav tsev ntim, txhim kho cov pa xa mus rau qhov ua tau zoo, qhov ntxhib npuas diffusers tsim cov npuas loj dua uas txhim kho kev sib xyaw, tab sis muaj kev hloov pauv loj dua.
Khoom Khoom: Stainless Hlau vs Ordinary Diffusers
Ib qho ntawm qhov sib txawv tshaj plaws ntawm stainless hlau thiab cov diffusers zoo tib yam nyob hauvcov khoom muaj pes tsawg leeg thiab mechanical zog. Stainless hlau diffusers yog tsim los ntawm corrosion{1}}cov hlau tsis muaj zog xws li qib 304 lossis 316 stainless hlau, muab cov qauv kev ntseeg ruaj khov thiab ua haujlwm rau cov dej khib nyiab hnyav. Ordinary diffusers feem ntau yog tsim los ntawmroj hmab daim nyias nyias, EPDM (ethylene propylene diene monomer), silicone, los yog ntau yam yas(Tchobanoglous et al., 2014). Cov ntaub ntawv elastomeric no tuaj yeem muab qhov zoo tshaj plaws rau kev yooj yim thiab ua npuas dej, tab sis lawv feem ntau cuam tshuam rau kev degradation los ntawm kev raug tshuaj lom neeg, biofouling, thiab siv txhua lub sijhawm.
Lub durability ntawm stainless hlau muab nws ib tug ntug nyob rau hauv daim ntaub ntawv uas mechanical puas, ntev kev khiav hauj lwm lub sij hawm, los yog siab solids ib puag ncig tej zaum yuav cuam tshuam cov elastomeric diffuser Cheebtsam. Thaum cov roj hmab los yog yas daim nyias nyias yuav degrade thiab yuav tsum tau hloov tsis tu ncua, cov ntaub ntawv teev cov hlau tsis zoo diffusers tuaj yeem tswj cov qauv kev ncaj ncees rauntev kev pab cuam, txo qis downtime thiab lifecycle cov nqi txawm tias ntau dua qhov kev siv nyiaj pib.
Bubble Formation thiab Oxygen Transfer Performance
Kev ua tau zoo ntawm aeration diffusers yog ze ze rau qhovloj, uniformity, thiab ntom ntawm cov pa npuaslawv tsim. Fine npuas diffusers, txawm tias roj hmab, yas, lossis stainless hlau, lub hom phiaj los tsim cov npuas me me uas ua rau thaj tsam loj tshaj plaws thiab ntev lub sijhawm nyob hauv dej, yog li pab txhawb kev hloov pauv oxygen (OTE). Ordinary elastomeric diffusers feem ntau vam khom ntawm daim nyias nyias los tsim cov npuas zoo, nruam npuas los ntawm qhov loj me me. Cov membranes no tuaj yeem tsim kho los tsim cov npuas me me thaum xub thawj, tab sis qhov pore distortion dhau sij hawm vim stretching, fouling, los yog tearing yuav txo tau kev ua tau zoo.

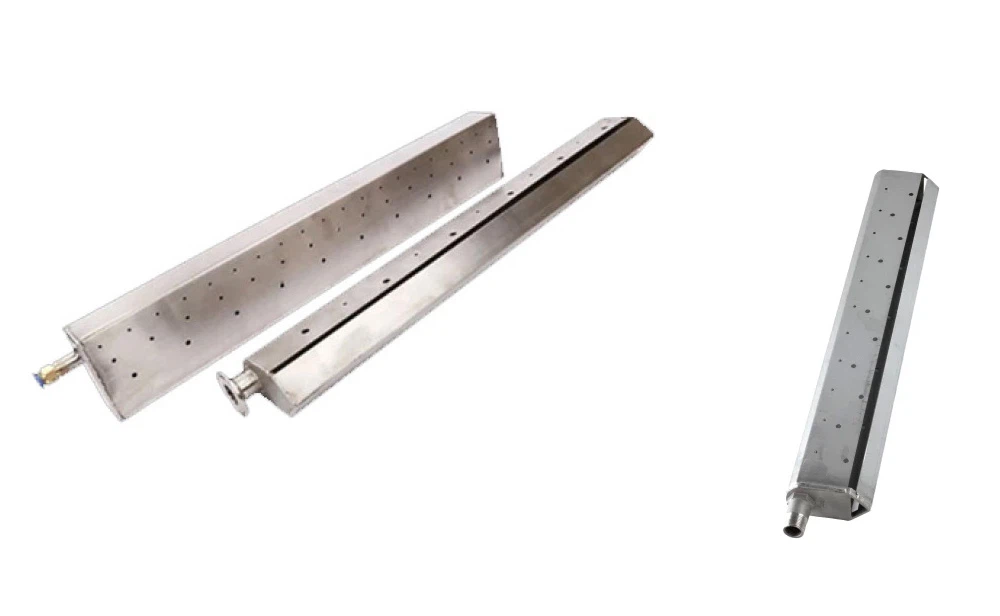

Stainless hlau diffusers, ntawm qhov sib txawv, feem ntau sivprecision machined micro-perforationsuas tswj cov npuas loj sib xws thiab tiv thaiv deformation nyob rau hauv kev ua haujlwm kev ntxhov siab. Vim tias cov hlau tsis ncab ib yam li cov ntaub ntawv elastomeric ua, cov yam ntxwv ua npuas tuaj yeem nyob ruaj khov rau lub sijhawm ua haujlwm ntev dua. Lub cim xeeb ntawm cov npuas zoo txhim khooxygen hloov efficiencythiab tuaj yeem ua rau txo qis kev siv hluav taws xob, txij li lub tshuab hluav taws xob tsawg dua yog xav tau rau tib lub pa oxygen thov piv rau cov roj hmab laus lossis cov yas diffusers. Txawm li cas los xij, qhov kev ua tau zoo tshwj xeeb yog cuam tshuam los ntawm diffuser tsim, qhov sib nrug, qhov tob, thiab qhov system hydraulic.
Kev ruaj ntseg, Fouling, thiab ua haujlwm cuam tshuam
Ob qho tib si stainless hlau thiab zoo tib yam diffusers yog raug raufouling thiab clogging, tshwj xeeb tshaj yog nyob rau hauv cov dej khib nyiab uas muaj cov khib nyiab siab lossis cov peev txheej loj. Biofilm tsub zuj zuj, ntxhia los nag, thiab sludge intrusion tuaj yeem thaiv diffuser pores, txo cov pa xa mus thiab yuav tsum tau ntxuav. Ordinary membrane diffusers feem ntau yooj yim rauchemical thiab biological foulingvim hais tias lawv softer nto muab ntau lub sij hawm rau deposition thiab membrane distortion. Kev tu cov elastomeric diffusers yuav xav tau cov tshuaj ntub dej lossis txhuam txhuam, thiab kev tu ntau dhau tuaj yeem ua rau daim nyias nyias, ua rau hloov ntxov ntxov.
Stainless hlau diffusers tuaj yeem ntxuav tau siv txoj kev siv zog ntau dua, suav nrog kev txhuam txhuam lossis tswj kev siab siab -txoj kev ntxuav, tsis muaj kev pheej hmoo ntawm tearing ib daim nyias nyias. Lub smoother hlau nto kuj zoo li tiv thaiv thawj fouling zoo dua li textured elastomeric cov ntaub ntawv, lub ntsiab lus stainless hlau diffusers tuaj yeem txhawb kev ua haujlwm ntev dua ntawm kev saib xyuas. Txawm li cas los xij, hlau diffusers tsis tiv thaiv corrosion los yog scaling; Yog li, kev xaiv cov khoom tsim nyog qib thiab kev saib xyuas kev ua haujlwm yog qhov tseem ceeb.
Nqi, Lifecycle, thiab Sustainability Considerations
Thaum xaiv aeration diffusers rau lub chaw kho dej khib nyiab, kev txiav txim siab- cov neeg tsim khoom yuav tsum sib npaugcov nqi peev, kev saib xyuas, kev siv hluav taws xob, thiab kev ua neej nyob ruaj khov. Cov roj hmab zoo tib yam lossis yas diffusers feem ntau pheej yig dua, ua rau lawv txaus siab rau WWTPs me me los yog pob nyiaj siv -cov haujlwm txwv. Lawv qhov yooj yim ntawm kev teeb tsa thiab kev ua haujlwm thawj zaug tuaj yeem xa cov txiaj ntsig tau zoo hauv ntau daim ntawv thov txheej txheem. Nyob rau tib lub sijhawm, txawm li cas los xij, qhov xav tau rau kev hloov pauv ntawm daim nyias nyias thiab cov peev xwm poob qis hauv kev hloov pauv oxygen tuaj yeem nce ntxivcov nqi ua haujlwm.
Stainless hlau diffusers feem ntau tuaj nrog tus nqi pib dua tab sis tuaj yeem muabqis dua - cov nqi tu lub sijhawm thiab kev ua haujlwm ruaj khov dua, uas tuaj yeem cuam tshuam cov peev nyiaj ua ntej thoob plaws lub cev lub neej. Ntxiv mus, vim hais tias oxygen hloov efficiency cuam tshuam rau lub zog noj - thiab lub zog feem ntau yog ib qho ntawm cov kev siv nyiaj loj tshaj plaws hauv kev kho mob cog - kev ua tau zoo ntawm stainless hlau diffusers tuaj yeem pab txhawb.tag nrho sustainabilitycov hom phiaj los ntawm kev txo kev siv zog.
Cov ntawv thov Case thiab cov kev xav tau
Ob hom diffusers muaj lawv qhov chaw nyob rau hauv niaj hnub dej khib nyiab engineering. Ordinary diffusers yog dav siv nyob rau hauv cov pa activated sludge systems uas tej yam kev mob yog nruab nrab thiab hloov logistics yog tswj tau. Lawv tshwj xeeb tshaj yog txaus nyiam qhov twg kev txwv nyiaj txiag lossis kev teeb tsa yooj yim yog qhov tseem ceeb. Stainless hlau diffusers feem ntau xaiv hauvmuaj kev kho dej khib nyiab, siab -cov khoom sludge, los yog cov chaw uas muaj - lub sijhawm ua haujlwm ntev thiab cov kev pabcuam hnyav. Cov kws kho tsheb kuj tseem yuav tsum xav txog cov reactor geometry, airflow yuav tsum, diffuser layout, thiab kev saib xyuas kev siv tau thaum qhia txog hom diffuser.
Xaus
Hauv cov ntsiab lus, aeration diffusers - txawm tias stainless hlau lossis hom elastomeric zoo tib yam - yog qhov tseem ceeb rau kev muab cov pa oxygen thiab ua kom yooj yim sib xyaw hauv kev kho dej khib nyiab. Kev xaiv ntawm stainless hlau thiab zoo tib yam diffusers hinges ntawm yam xws liCov khoom siv ua haujlwm ntev, kev hloov pauv oxygen, kev xav tau kev saib xyuas, cov nqi siv lub neej, thiab kev ua haujlwm. Stainless hlau diffusers muab kev tsim kho zoo, tsim ua npuas sib xws, thiab ua kom muaj zog tiv thaiv kev puas tsuaj thiab fouling, uas tuaj yeem txhais tau rau lub neej ntev thiab kev siv zog. Cov roj hmab zoo tib yam lossis yas diffusers muab tus nqi - siv tau thiab hloov tau yooj yim, tshwj xeeb tshaj yog tsim rau cov ntawv thov hauv nroog. Kev nkag siab txog qhov sib txawv no ua rau cov kws tshaj lij dej khib nyiab los txhim kho cov tshuab aeration rau kev ua haujlwm thiab kev lag luam.
